iNode室内外型CPE是一款高速分组接入5G毫米波终端产品，该产品适用于工厂、港口、低空、矿山等工业场景。 iNode产品可以通过RJ45与其他设备连接。在5G毫米波网络的服务区域，可以通过该产品进行无线确定性低时延连接、感知、授时、定位等工业应用。该产品具备快速部署、高可靠、易于使用等特点。
ASMOTE
AI-Edge行业终端
'%20xmlns:inkscape='http://www.inkscape.org/namespaces/inkscape'%20xmlns:sodipodi='http://sodipodi.sourceforge.net/DTD/sodipodi-0.dtd'%20xmlns='http://www.w3.org/2000/svg'%20xmlns:svg='http://www.w3.org/2000/svg'%3e%3cdefs%20id='defs1'%20/%3e%3csodipodi:namedview%20id='namedview1'%20pagecolor='%23ffffff'%20bordercolor='%23000000'%20borderopacity='0.25'%20inkscape:showpageshadow='2'%20inkscape:pageopacity='0.0'%20inkscape:pagecheckerboard='0'%20inkscape:deskcolor='%23d1d1d1'%20inkscape:zoom='8.21'%20inkscape:cx='50'%20inkscape:cy='50'%20inkscape:window-width='1920'%20inkscape:window-height='1017'%20inkscape:window-x='1912'%20inkscape:window-y='-8'%20inkscape:window-maximized='1'%20inkscape:current-layer='Layer_1'%20/%3e%3cg%20id='g1'%20transform='matrix(1,0,0,-1,0,99.912216)'%20style='fill:%23ffffff;fill-opacity:1'%3e%3cpath%20d='m%2049.7,74.6%20c%20-0.3,0%20-0.5,0%20-0.7,-0.1%20-0.1,0%20-0.2,0%20-0.3,-0.1%20C%2048,74.2%2047.3,73.8%2046.8,73.3%20L%2010.5,36.2%20c%20-0.8,-0.8%20-1.2,-1.9%20-1.2,-3%200,-1.1%200.5,-2.2%201.3,-3%20l%203.8,-3.7%20c%201.7,-1.6%204.3,-1.6%206,0.1%20L%2049.9,57%2079.9,27%20c%201.6,-1.6%204.3,-1.6%206,0%20l%203.7,3.7%20c%201.6,1.7%201.6,4.3%200,6%20L%2052.7,73.5%20c%20-0.3,0.3%20-0.6,0.5%20-1,0.7%20-0.1,0%20-0.2,0.1%20-0.2,0.1%20l%20-0.2,0.1%20c%20-0.2,0.1%20-0.4,0.1%20-0.7,0.2%20-0.3,0%20-0.6,0%20-0.9,0%20z%20M%2017.3,27.4%20c%20-0.6,0%20-1.1,0.2%20-1.5,0.6%20L%2012,31.7%20c%20-0.9,0.9%20-0.9,2.3%200,3.1%20L%2048.2,72%20c%200.3,0.3%200.6,0.5%201,0.6%200.1,0%200.1,0%200.1,0%20h%200.1%20c%200.2,0%200.5,0%200.8,0%200.1,0%200.2,-0.1%200.3,-0.1%200,0%200.1,0%200.1,-0.1%20h%200.1%20c%200.2,-0.1%200.4,-0.2%200.5,-0.4%20L%2052.3,71%2088,35.3%20c%200.9,-0.9%200.9,-2.3%200,-3.1%20l%20-3.7,-3.7%20c%20-0.9,-0.9%20-2.3,-0.9%20-3.1,0%20L%2049.8,59.8%2018.8,28%20c%20-0.4,-0.4%20-1,-0.6%20-1.5,-0.6%20z'%20id='path1'%20style='fill:%23ffffff;fill-opacity:1'%20/%3e%3c/g%3e%3c/svg%3e)
>10Gbps上行大带宽， <10ms@99.99%确定性时延， 支持分米级定位， 感知距离超过1公里

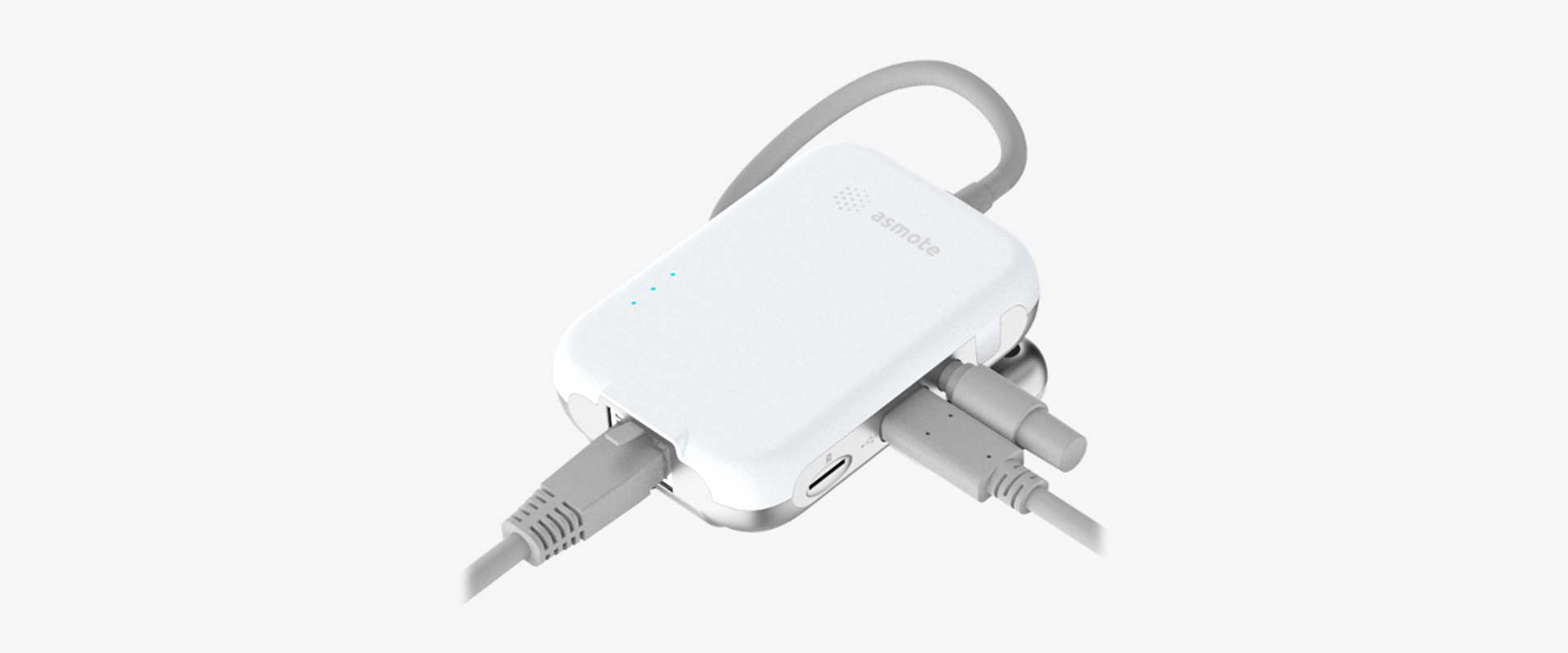

Asmote iNode 室内外型CPE专为工业场景打造，是一款出色的5G毫米波终端产品
网络性能优越
支持5G毫米波（N257/N258）、5Gsub6（多个频段）以及多种2G/3G/4G频段，全球通用。5G峰值速率高，毫米波频段下行10Gbps、上行3.38Gbps；Sub6G频段下行4.9Gbps、上行0.9Gbps。支持毫米波2x2MIMO和Sub6G4x4MIMO，抗干扰能力强，传输稳定快速。
硬件配置高端
采用高通SDX65基带芯片，处理能力强。8Gb+8Gb内存保障设备稳定运行。配备10GLAN接口、USB2.0micro接口和1*4FFSIM（nanocard）插槽，满足多种连接和扩展需求。内置天线设计合理，信号收发效果好。
软件功能丰富
支持本地和远程升级，轻松获取新功能。支持多种网络协议，自动APN匹配简化配置。具备数据统计功能，方便管理网络。通过BLEAPP可实现手机端便捷控制。
环境适应良好
防护等级IP65，防尘防水。工作温度40°C~+50°C，存储温度40°C-+70°C，能在极端环境下工作。具备ESD保护，抗静电能力强。
安装灵活便捷
提供挂墙和抱杆两种安装方式，方便在不同工业场景快速部署。
应用场景
产品规格
空口
技术标准
5G mmWave NSN/SA/5G Sub6 SA/5G Sub6 NSA
5G/LTE/DC-HSPA+/HSPA+/HSPA/UMTS
支持频段
5G mm Wave:N257/N258
5G sub6:N1/N3/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79
LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32
LTE-TDD:B34/B/B38/B39/B40/B41/B42/B43
WCDMA:B1/B5/B8
性能
5G峰值速率（理论）
上行BW 800MHZ, up to 10Gbps (mm Wave)
下行BW 400MHZ, up to 3.38Gbps (mm Wave)
下行BW 100MHZ, up to 4.9Gbps (Sub6G)
下行BW 100MHZ, up to 0.9Gbps (Sub6G)
使用环境
工作温度
-40°C ~ +50°C
存储温度
-40°C ~ +70°C
湿度
5% ~ 95%
