AM-Foresense-S1/S2是一款利用毫米波远距离检测目标距离、速度、方位的形变监测仪。可以同时监测整个覆盖范围内的全部目标，并且不受光照、水气、温度等影响。
ASMOTE
形变监测仪
'%20xmlns:inkscape='http://www.inkscape.org/namespaces/inkscape'%20xmlns:sodipodi='http://sodipodi.sourceforge.net/DTD/sodipodi-0.dtd'%20xmlns='http://www.w3.org/2000/svg'%20xmlns:svg='http://www.w3.org/2000/svg'%3e%3cdefs%20id='defs1'%20/%3e%3csodipodi:namedview%20id='namedview1'%20pagecolor='%23ffffff'%20bordercolor='%23000000'%20borderopacity='0.25'%20inkscape:showpageshadow='2'%20inkscape:pageopacity='0.0'%20inkscape:pagecheckerboard='0'%20inkscape:deskcolor='%23d1d1d1'%20inkscape:zoom='8.21'%20inkscape:cx='50'%20inkscape:cy='50'%20inkscape:window-width='1920'%20inkscape:window-height='1017'%20inkscape:window-x='1912'%20inkscape:window-y='-8'%20inkscape:window-maximized='1'%20inkscape:current-layer='Layer_1'%20/%3e%3cg%20id='g1'%20transform='matrix(1,0,0,-1,0,99.912216)'%20style='fill:%23ffffff;fill-opacity:1'%3e%3cpath%20d='m%2049.7,74.6%20c%20-0.3,0%20-0.5,0%20-0.7,-0.1%20-0.1,0%20-0.2,0%20-0.3,-0.1%20C%2048,74.2%2047.3,73.8%2046.8,73.3%20L%2010.5,36.2%20c%20-0.8,-0.8%20-1.2,-1.9%20-1.2,-3%200,-1.1%200.5,-2.2%201.3,-3%20l%203.8,-3.7%20c%201.7,-1.6%204.3,-1.6%206,0.1%20L%2049.9,57%2079.9,27%20c%201.6,-1.6%204.3,-1.6%206,0%20l%203.7,3.7%20c%201.6,1.7%201.6,4.3%200,6%20L%2052.7,73.5%20c%20-0.3,0.3%20-0.6,0.5%20-1,0.7%20-0.1,0%20-0.2,0.1%20-0.2,0.1%20l%20-0.2,0.1%20c%20-0.2,0.1%20-0.4,0.1%20-0.7,0.2%20-0.3,0%20-0.6,0%20-0.9,0%20z%20M%2017.3,27.4%20c%20-0.6,0%20-1.1,0.2%20-1.5,0.6%20L%2012,31.7%20c%20-0.9,0.9%20-0.9,2.3%200,3.1%20L%2048.2,72%20c%200.3,0.3%200.6,0.5%201,0.6%200.1,0%200.1,0%200.1,0%20h%200.1%20c%200.2,0%200.5,0%200.8,0%200.1,0%200.2,-0.1%200.3,-0.1%200,0%200.1,0%200.1,-0.1%20h%200.1%20c%200.2,-0.1%200.4,-0.2%200.5,-0.4%20L%2052.3,71%2088,35.3%20c%200.9,-0.9%200.9,-2.3%200,-3.1%20l%20-3.7,-3.7%20c%20-0.9,-0.9%20-2.3,-0.9%20-3.1,0%20L%2049.8,59.8%2018.8,28%20c%20-0.4,-0.4%20-1,-0.6%20-1.5,-0.6%20z'%20id='path1'%20style='fill:%23ffffff;fill-opacity:1'%20/%3e%3c/g%3e%3c/svg%3e)
AM-Foresense-S1/S2毫米波形变监测仪在监测精度、部署维护成本、可靠性易用性等方面明显优于传统手段。毫米波形变监测仪相对传统GNSS技术，具备监测范围广、安装方便、施工成本低的优势；相对合成孔径雷达，具备产品体积小、无需拉线、测量无需人工干预、设备成本低的优势。 AM-Foresense-S1/S2毫米波形变监测仪可提供距离监测、方位监测和雷达成像等功能。高集成度多通道实孔径毫米波形变监测仪技术相比合成孔径雷达价格低1个数量级。
技术优势：

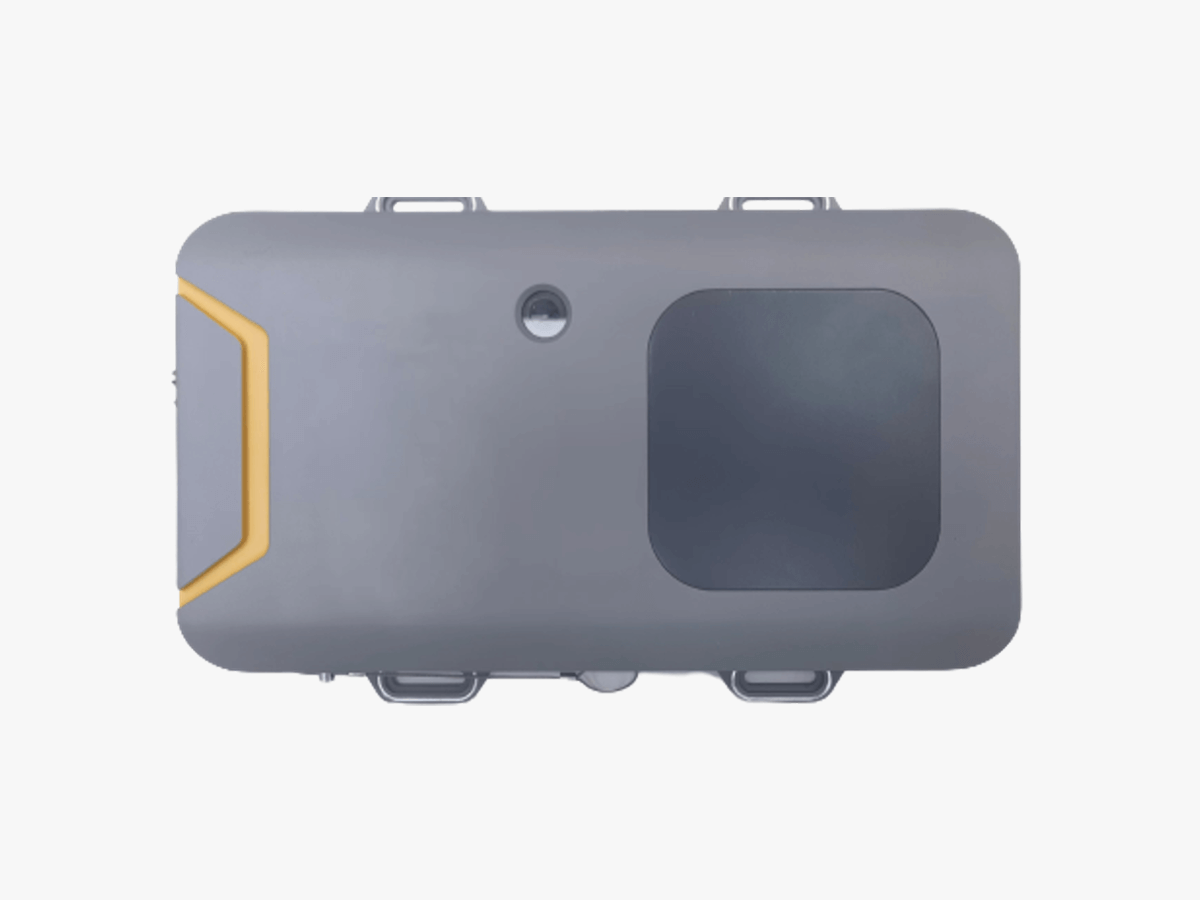

AM-Foresense-S1

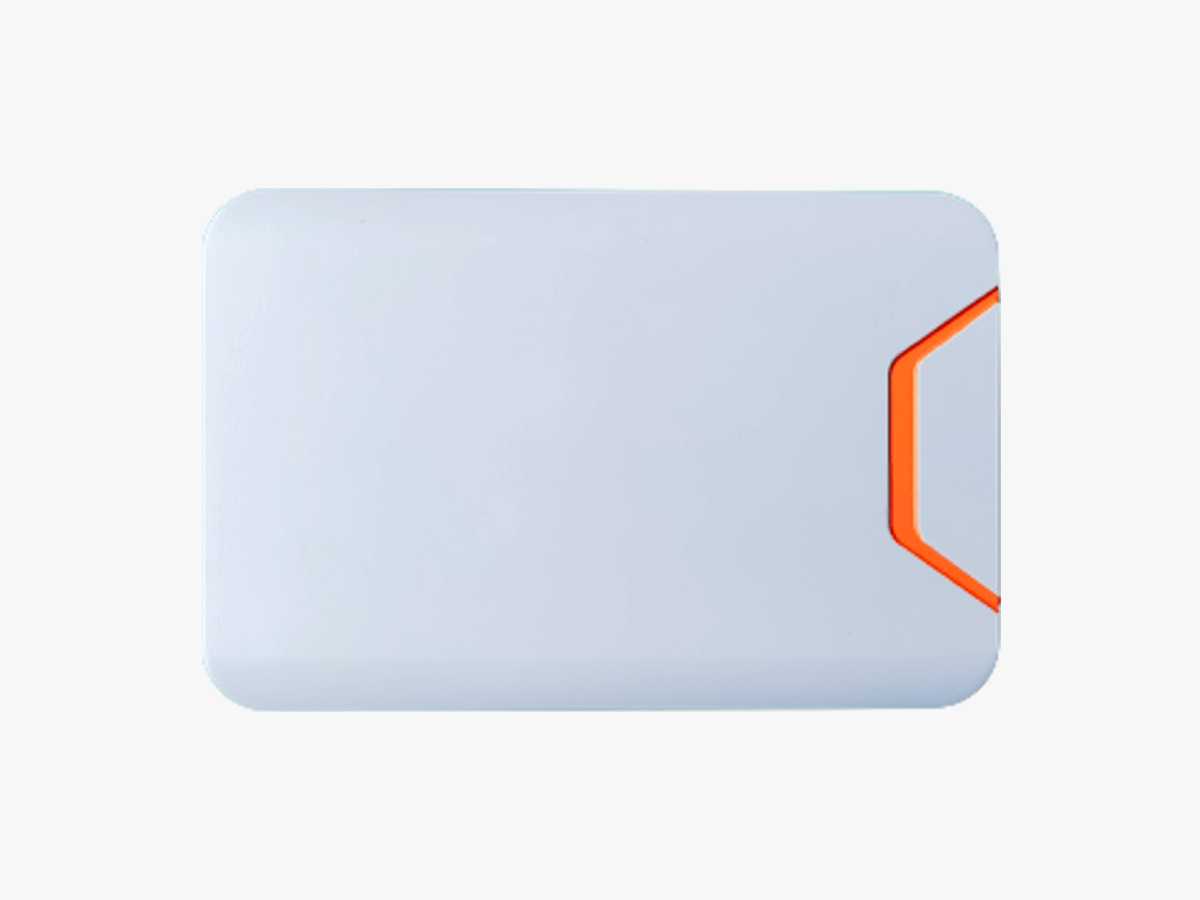

AM-Foresense-S2
应用场景

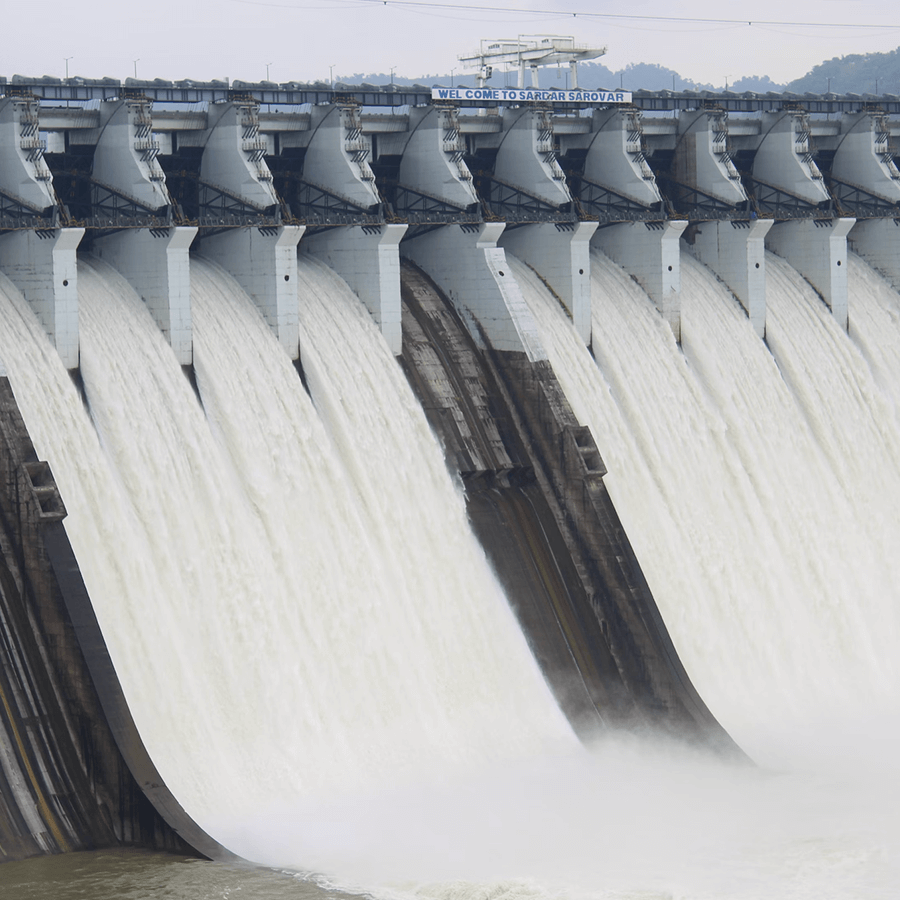

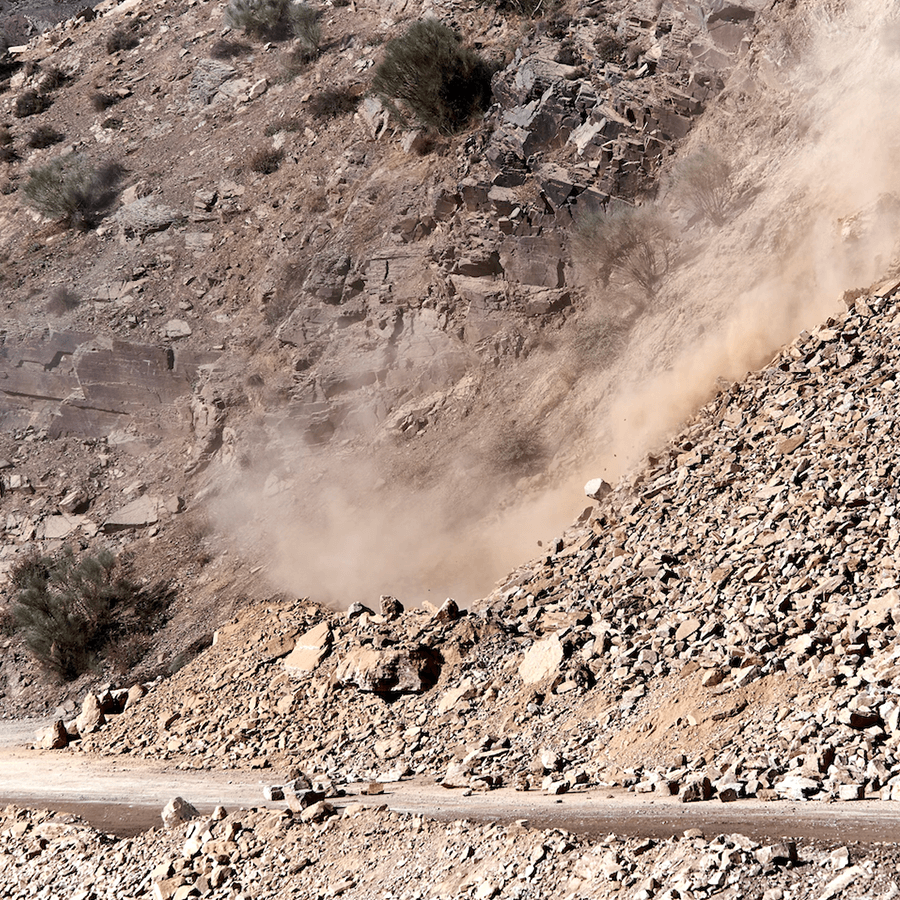

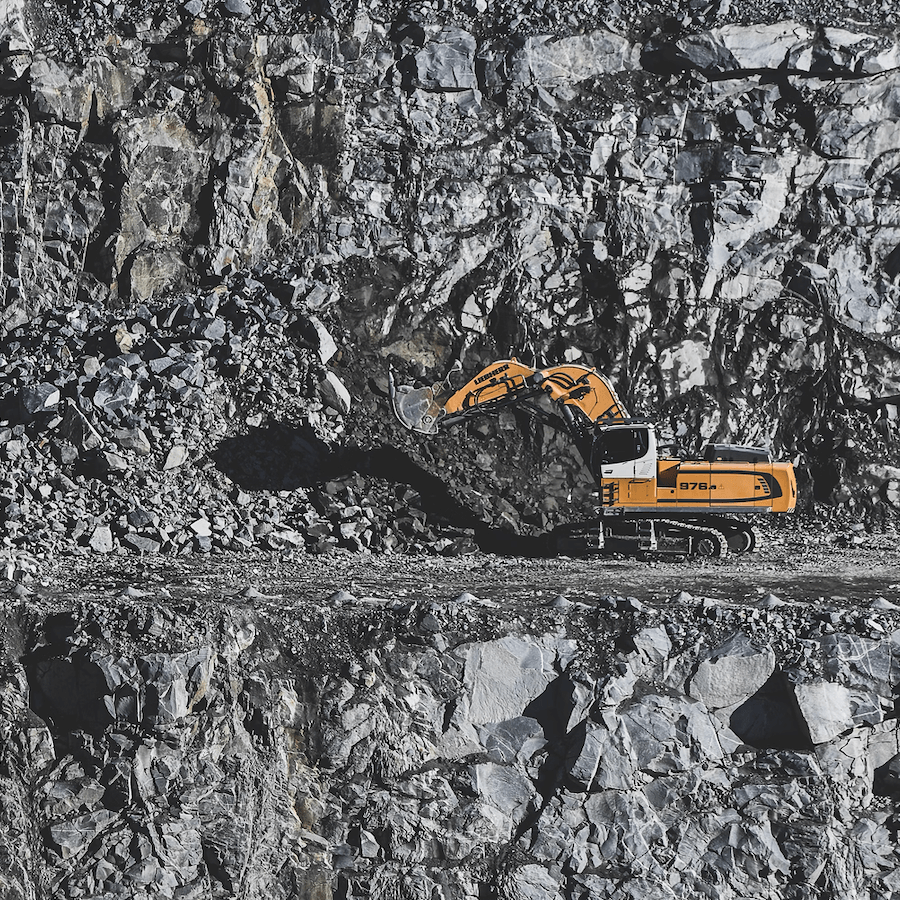

产品适用于边坡形变、坝体形变等中远距离大面积覆盖型监测场景
产品规格
毫米波形变监测仪在监测精度、部署维护成本、可靠性易用性等方面明显优于传统手段。毫米波形变监测仪相对传统GNSS技术，具备监测范围广、安装方便、施工成本低的优势；相对合成孔径雷达，具备产品体积小、无需拉线、测量无需人工干预、设备成本低的优势
AM-Foresense-S1
AM-Foresense-S2
基础信息
尺寸
270mm*140mm*40mm
170mm*104mm*35mm
重量
<1kg
<0.35kg
硬件
功耗
15W
10W
防水等级
IP65
IP65
工作温度
-40°C ~ +85°C
-40°C ~ +85°C
供电方式
12V DC
12V DC
数据接口
以太或4G/5G公网
以太或4G/5G公网
摄像头
200万像素(1920*1080)
无
性能
工作频段
80GHz
80GHz
工作距离
500m
200m
检测精度
<0.02mm
<0.02mm
距离分辨率
0.15m
0.15m
角度分辨率
1.9"
1.9"
方位视野
≥100"
≥100"
俯仰视野
≥30"
≥30"
采样频率
最高200HZ
最高200HZ
