AI-Edge射频头端是支持5G NR N257/N258频段的5G毫米波基站，支持多级级联，实现数据透传功能（如摄像头、WiFi、传感器等）。产品轻量化设计，体积小、易部署。产品有多种型号可选，具备通信与感知一体化，组网成本低，满足多场景需求。
ASMOTE
AI-Edge射频头端
'%20xmlns:inkscape='http://www.inkscape.org/namespaces/inkscape'%20xmlns:sodipodi='http://sodipodi.sourceforge.net/DTD/sodipodi-0.dtd'%20xmlns='http://www.w3.org/2000/svg'%20xmlns:svg='http://www.w3.org/2000/svg'%3e%3cdefs%20id='defs1'%20/%3e%3csodipodi:namedview%20id='namedview1'%20pagecolor='%23ffffff'%20bordercolor='%23000000'%20borderopacity='0.25'%20inkscape:showpageshadow='2'%20inkscape:pageopacity='0.0'%20inkscape:pagecheckerboard='0'%20inkscape:deskcolor='%23d1d1d1'%20inkscape:zoom='8.21'%20inkscape:cx='50'%20inkscape:cy='50'%20inkscape:window-width='1920'%20inkscape:window-height='1017'%20inkscape:window-x='1912'%20inkscape:window-y='-8'%20inkscape:window-maximized='1'%20inkscape:current-layer='Layer_1'%20/%3e%3cg%20id='g1'%20transform='matrix(1,0,0,-1,0,99.912216)'%20style='fill:%23ffffff;fill-opacity:1'%3e%3cpath%20d='m%2049.7,74.6%20c%20-0.3,0%20-0.5,0%20-0.7,-0.1%20-0.1,0%20-0.2,0%20-0.3,-0.1%20C%2048,74.2%2047.3,73.8%2046.8,73.3%20L%2010.5,36.2%20c%20-0.8,-0.8%20-1.2,-1.9%20-1.2,-3%200,-1.1%200.5,-2.2%201.3,-3%20l%203.8,-3.7%20c%201.7,-1.6%204.3,-1.6%206,0.1%20L%2049.9,57%2079.9,27%20c%201.6,-1.6%204.3,-1.6%206,0%20l%203.7,3.7%20c%201.6,1.7%201.6,4.3%200,6%20L%2052.7,73.5%20c%20-0.3,0.3%20-0.6,0.5%20-1,0.7%20-0.1,0%20-0.2,0.1%20-0.2,0.1%20l%20-0.2,0.1%20c%20-0.2,0.1%20-0.4,0.1%20-0.7,0.2%20-0.3,0%20-0.6,0%20-0.9,0%20z%20M%2017.3,27.4%20c%20-0.6,0%20-1.1,0.2%20-1.5,0.6%20L%2012,31.7%20c%20-0.9,0.9%20-0.9,2.3%200,3.1%20L%2048.2,72%20c%200.3,0.3%200.6,0.5%201,0.6%200.1,0%200.1,0%200.1,0%20h%200.1%20c%200.2,0%200.5,0%200.8,0%200.1,0%200.2,-0.1%200.3,-0.1%200,0%200.1,0%200.1,-0.1%20h%200.1%20c%200.2,-0.1%200.4,-0.2%200.5,-0.4%20L%2052.3,71%2088,35.3%20c%200.9,-0.9%200.9,-2.3%200,-3.1%20l%20-3.7,-3.7%20c%20-0.9,-0.9%20-2.3,-0.9%20-3.1,0%20L%2049.8,59.8%2018.8,28%20c%20-0.4,-0.4%20-1,-0.6%20-1.5,-0.6%20z'%20id='path1'%20style='fill:%23ffffff;fill-opacity:1'%20/%3e%3c/g%3e%3c/svg%3e)
AI-Edge射频头端当前有iAir8122/iAir8132/iAir9122/iAir9132等多种型号，8122和9122支持2T2R400M带宽，8132和9132支持2T2R800M带宽；8122和8132的ERIP是48dBm，4.5L/4kg，防护等级是IP65，适合室外场景。9122和9132的ERIP是43dBm，3L/3kg，支持PoE供电，适合室内灵活部署。

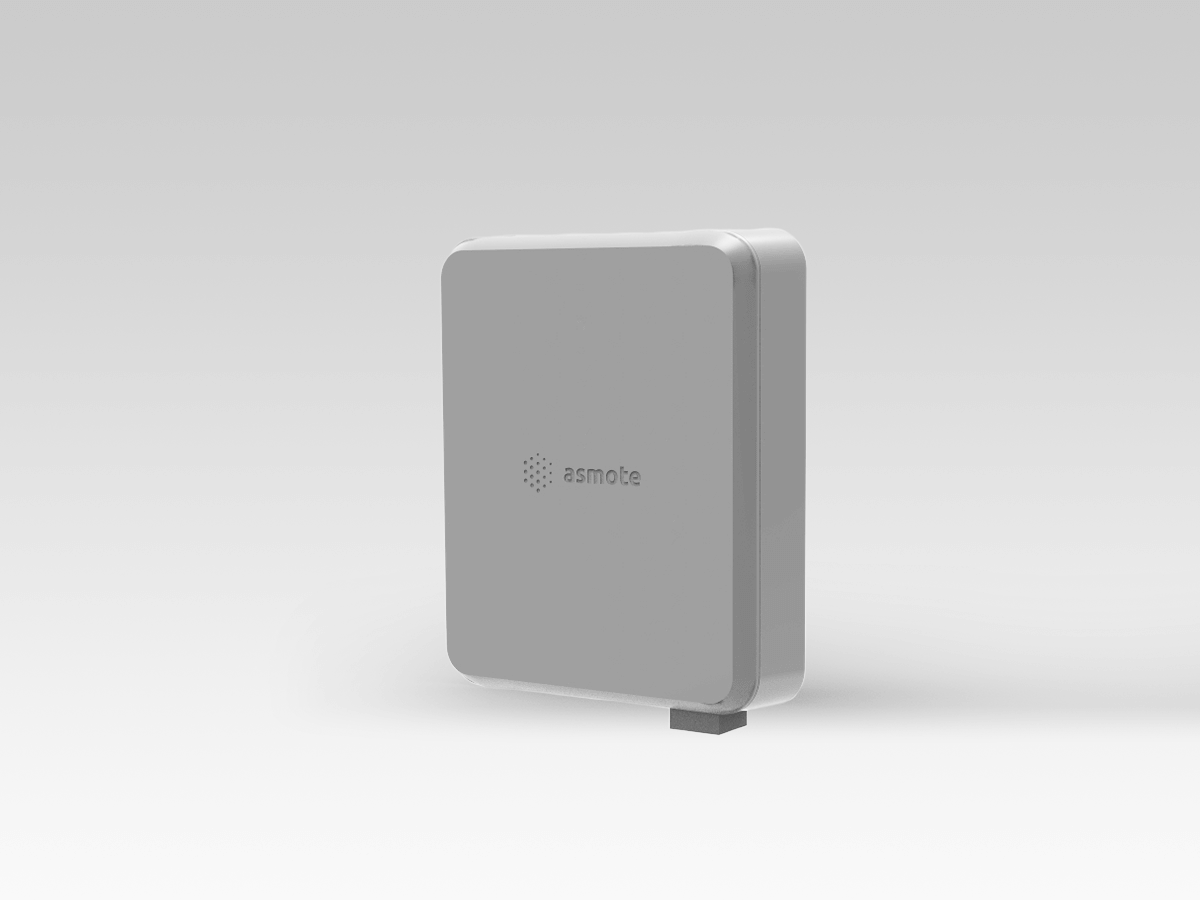

iAir8122
5G毫米波AAU
iAir9122
5G毫米波AAU
技术优势
超大带宽与高速率
具备极高的频率和丰富的频谱资源，26GHz毫米波基站的带宽可以分配到连续800 MHz的带宽，而Sub-6 GHz基站只能分配到100-200 MHz。26GHz毫米波基站的峰值速率可达10 Gbps以上，数倍于Sub-6 GHz基站
极低时延
毫米波基站的高频率特性使其能够实现极低的传输时延。毫米波系统的空口时隙长度最小可至0.125 ms，在采用短时隙调度时，空口时延可以更低。这种低时延特性能够满足工业互联网、自动驾驶、虚拟现实等对时延要求极高的应用场景
波束赋形
毫米波基站采用相控阵天线阵子，结合波束赋形技术，毫米波基站能够实现高增益的定向传输，增强信号覆盖范围，并显著降低干扰。实现通信的灵活性和可靠性，支持更密集的小区部署
通感一体化
毫米波基站不仅具备通信功能，还能实现类似雷达的感知功能。毫米波信号波束窄、方向性好，具有极高的空间分辨力和时间精度，能够实现厘米级的高精度定位。这一特性在工业场景（如机器人控制）和低空场景（如低空探测）中具有重要应用价值
产品规格
iAir8132
iAir9132
产品性能
3GPP标准
3GPP TS38.104
3GPP TS38.104
制式
TDD
TDD
频率范围
N257: 26.5GHz - 29.5GHz
N258: 24.25GHz - 27.5GHz
N257: 26.5GHz - 29.5GHz
N258: 24.25GHz - 27.5GHz
相对带宽
200MHz / 400 MHz / 800 MHz
200MHz / 400 MHz / 800 MHz
等效辐射功率(EIRP)
48dBm
43dBm
工程规格
尺寸
236mm x 300mm x 70mm
210mm x 210mm x 70mm
重量
< 4kg
< 3kg
供电
DC(-48V)
PoE++ (IEEE 802.3bt)
安装方式
挂墙/抱杆
吸顶/挂墙/抱杆
功耗
< 70W
< 70W
使用环境
工作温度
-40℃ ~ +50℃
-20℃ ~ +40℃
存储温度
-40℃ ~ +70℃
-40℃ ~ +70℃
环境湿度
5%～95%
5%～95%
防护等级
IP65
IP30
